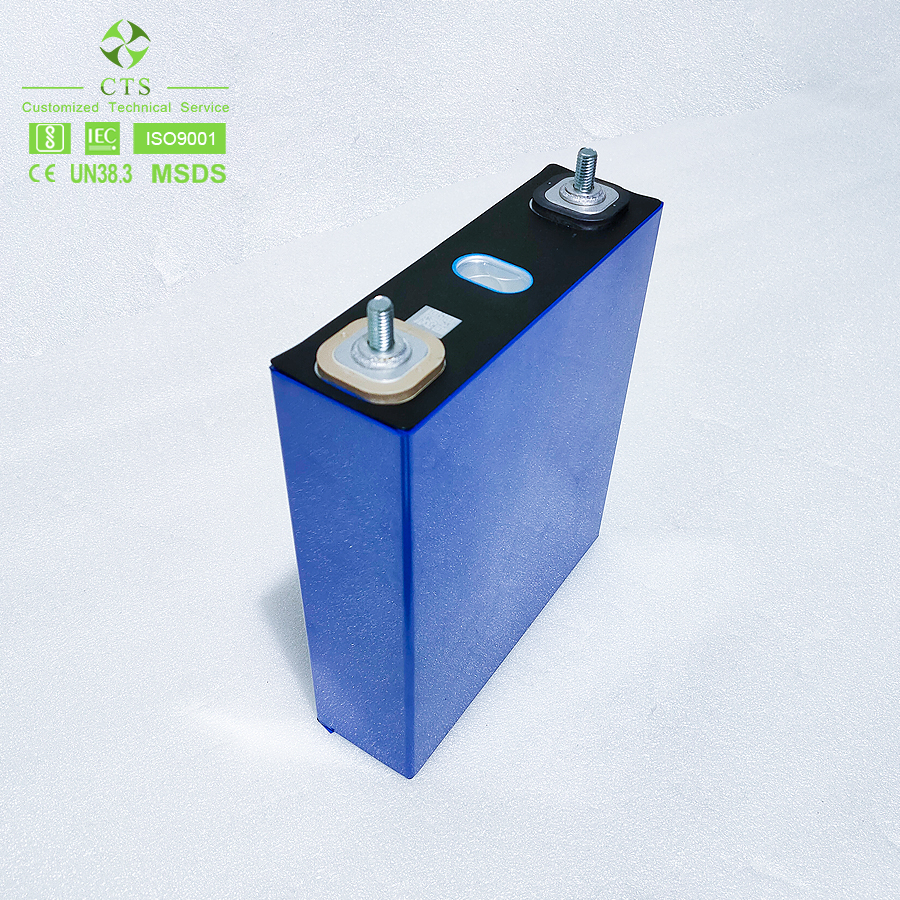

3.2V 206ah Square Shell Cell STRONG POWER And Long Endurance
1, Long cycle life:6000times cycles,
2, Small size and light weight:LiFePO4 battery size and weight is 1/3 of Lead acid battery
3, <1% low self-consuming rate
4, Built-in automatic protection for over-charge, over discharge, over current and over temperature control.
5, Can be charged using most standard lead-acid charges.
6, Green eneygy to potect our world better.
7, The price come with Bus bars and Bolts,one battery will come with one set bus bar and bolt ,If need more please contact us online.Thank you!
8, We will test all the battery Voltage ,Internal resistance and capacity before delivery
Specifications:
| Item | Specification | Notes |
| Cell model | CTS-F54175206 | *LFP |
| Shell | AL | *Prismatic |
| Nominal Capacity | 206Ah | *2.5~3.65V *25A discharge current & Initial Status |
| Minimum Capacity | 206Ah | *2.5~3.65V, at 23±2℃ *25A discharge current &Initial Status |
| Nominal Voltage | 3.2V | *N.A. |
| Operating Voltage Range | 2.50-3.65V | *100%DOD |
| Charging Voltage | 3.65V | *N.A. |
| Standard Charging Method | CCCV and CC is 0.5C | *N.A. |
| Max.Charge Current | 0.5C/2h | *Temperature23±2℃ |
| Standard Discharging Method | 0.5C/2h | *Constant Current Discharge with 0.5C |
| Max.Discharge Current | 1C/120s 2C/10s | *Discharge Time: 1C Less than 120 s(at23±2℃) 2C Less than 10 s(at23±2℃) |
| Initial Inner Resistance(1KHz) | ≤0.4 mΩ | *Initial Status *50% SOC |
| Cell Weight | 4.18Kg±30g | *N.A. |
| Self-discharge | ≤4% per month | *25℃/50%SOC/within 3 months since date of manufacture |
| Cycle life | About 3000cycles | *at 25℃&Standard charge and discharge |
| Operating Temperature | 0℃～55℃ | *Charging Operating |
| -20℃～60℃ | *Discharging Operating |
FAQ:
1): Are you manufacturer or simply trading company?
Re: We are manufacturer, and we sincerely welcome you to visit our factory!
2): Can I get a lower price if I order large quantities?
Re: Yes, cheaper prices with more bigger size orders.
3): Do you offer charger for battery?
Re: Yes, we do. If you also need charger, please mention it when sending inquiry, kindly note that our charger cost is not included in the battery cost.
4): How about your company intelligence?
Re: ISO9001 certification, China Hi-tech company, 10 million battery assurance, 8 patents, Almost all products are MSDS, UN38.3, IEC62133, CB,etc certificated.
5): When you ship my order?
Re: Normally 5-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.
6): How about the quality guarantee period?
Re: Two year!
