Deep Cycle Lithium Battery 300V 500V 614V for Truck, 150kwh 200kwh Standard EV Lithium Battery
>>>Standard EV Battery Module for
>>>For Electric Bus and Heavy Truck
>>>Support Max 600KWH System
Product Description
| MODEL | F128206 | F128230 | F153206 | F153230 |
| ELECTRICAL SPECIFICATIONS |
| Cell Type - Chemistry | 3.2V 206ah | 3.2V 230ah | 3.2V 206ah | 3.2V 230ah |
| Rated Capacity | 206Ah | 230Ah | 206Ah | 230Ah |
| Rated Voltage | 128V | 128V | 153.6V | 153.6V |
| Energy | 26.386kWh | 29.44kWh | 31.16kWh | 35.328kWh |
| IP Proetction | IP67 |
| Cycle life | >3000cycles(90%DOD, 0.5C) |
| MECHANICAL SPECIFICATIONS |

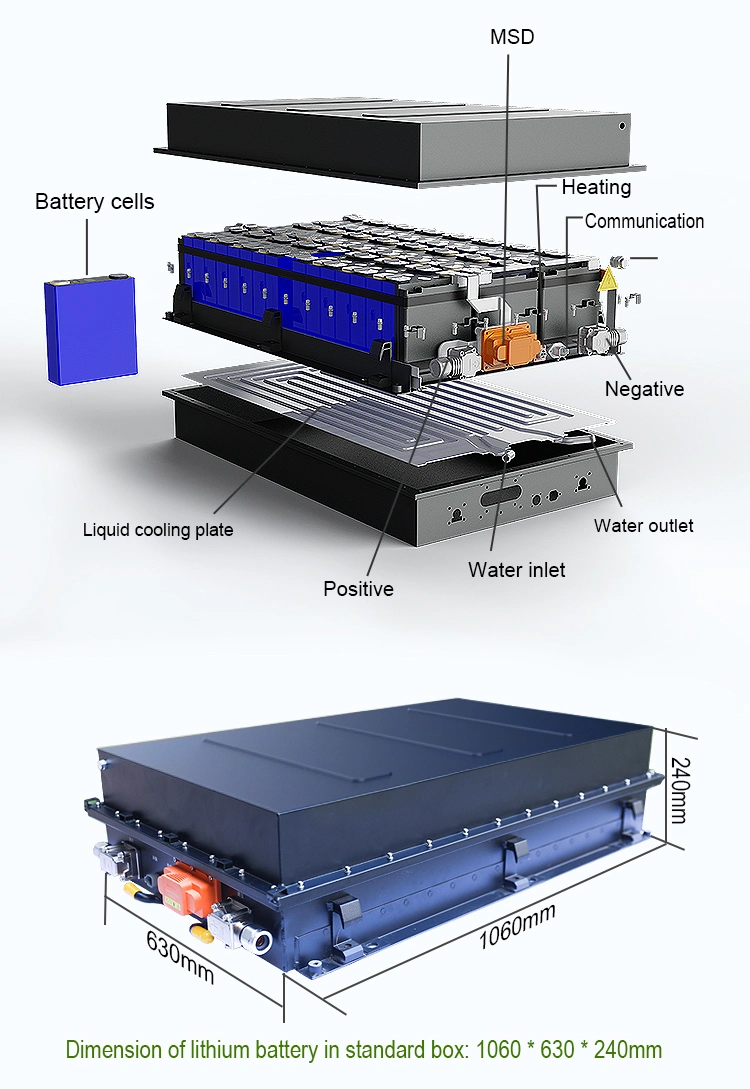

| Dimensions (L x W x H) | Within L1060*W630*H245mm |
| Weight | <=230Kg |
| DISCHARGE/CHARGE SPECIFICATIONS |
| Discharge Cut-off Voltage | 100V | 100V | 120V | 120V |
| Max Continuous Discharging | 1C |
| Peak Discharge Current | 2C/30s; 3C/5s |
| Recommended Discharge Current | 0.5C |
| CHARGE SPECIFICATIONS |
| Charging Limited Voltage | 146V | 146V | 175.2V | 175.2V |
| Max Charging Current | 1C |
| Recommended Charge Current | 0.5C |
| TEMPERATURE SPECIFICATIONS |
| Self discharge rate | ≤ 3 %/month |
| Charge Temperature Range | 0~50ºC |
| Discharge Temperature Range | -20~60ºC |
| Recommended Operating Temp | 15~35ºC |
| Storage Temperature & Humidity | -20~35ºC, 45~75%RH |
| Range (Less than 1 month) |
| Storage Temperature & Humidity | -10~35ºC, 45~75%RH |
| Range (Less than 3 months) |
| Recommended Storage Temp. & Humidity Range | 15~35ºC, 45~75%RH |
| System cooling mode | Liquid cooling |
| MODEL | F96280 | F96302 | F115280 | F115302 |
| ELECTRICAL SPECIFICATIONS | ELECTRICAL SPECIFICATIONS | ELECTRICAL SPECIFICATIONS |
| Cell Type | 3.2V 280ah | 3.2V 302h | 3.2V 280ah | 3.2V 302h |
| Rated Capacity | 280Ah | 302Ah | 280Ah | 302Ah |
| Rated Voltage | 96V | 96V | 115.2V | 115.2V |
| Energy | 26.88kWh | 28.99kWh | 32.256kWh | 34.79kWh |
| IP Proetction | IP67 |
| Cycle life | >3000cycles(90%DOD, 0.5C) |
| MECHANICAL SPECIFICATIONS |
| Dimensions (L x W x H) | Within L1060*W630*H245mm |
| Weight | <=230Kg |
| DISCHARGE/CHARGE SPECIFICATIONS |
| Discharge Cut-off Voltage | 75V | 75V | 90V | 90V |
| Max Continuous Discharging | 1C |
| Peak Discharge Current | 2C/30s; 3C/5s |
| Recommended Discharge Current | 0.5C |
| CHARGE SPECIFICATIONS |
| Charging Limited Voltage | 109.5V | 109.5V | 131.4V | 131.4V |
| Max Charging Current | 1C |
| Recommended Charge Current | 0.5C |

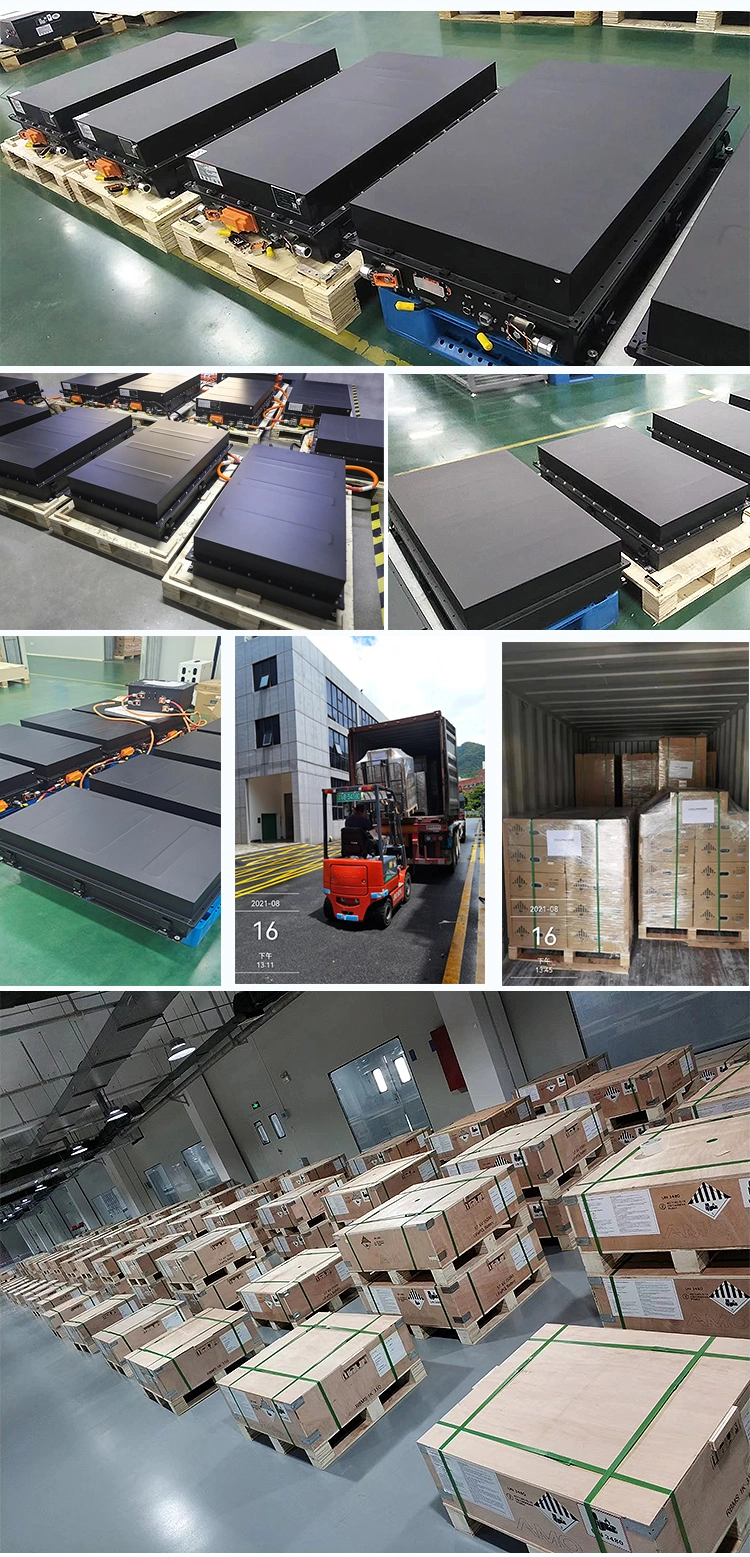

Product Applications & Photos
Our standard module widely used in the public bus, industry vehicle, like mining truck, Tunnel vehicle,
large capacity AGV, kyline crane. We have extensive experience in different market.
lf you have any question,please contact us, we will provide the proper solution for you!
Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle
batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries
and so on. We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah,
which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,
E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements.
To realized full automation, we has introduced advanced foreign equipment and technology from Korea and
Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1
certifications. We stick to the company concept of human orientation and efficient innovation and we welcome
customization. So, lets join together to promote the development of renewable energy and friendly environment.
|
|
