614v 100ah 206ah 280ah Lifepo4 Lfp Lithium Battery Pack For Ev Electric Car

Brand Name : CTS

Model Number : CTS-614100

Certification : CE, MSDS

Place of Origin : Hunan,China

MOQ : 2 unit

Price : 3599~7999USD

Supply Ability : 5000 untis per month

Delivery Time : 25-35 working days

Packaging Details : Polywood case

Warranty : 3 years

Battery Size : 1780* 720*345mm

Weight : 558.55kg

Cycle life : 3000times

OEM/ODM : Acceptable

Voltagge : 614.4v

Capacity : 100Ah

Power : 61.44kwh

Type : NMC, Lifepo4

Discharge : 1C

Charging : 1C

Applicationev : electric car, truck, bus, AGV, boat

Contact Now

614v 100ah 206ah 280ah lifepo4 lfp lithium battery pack for ev electric car

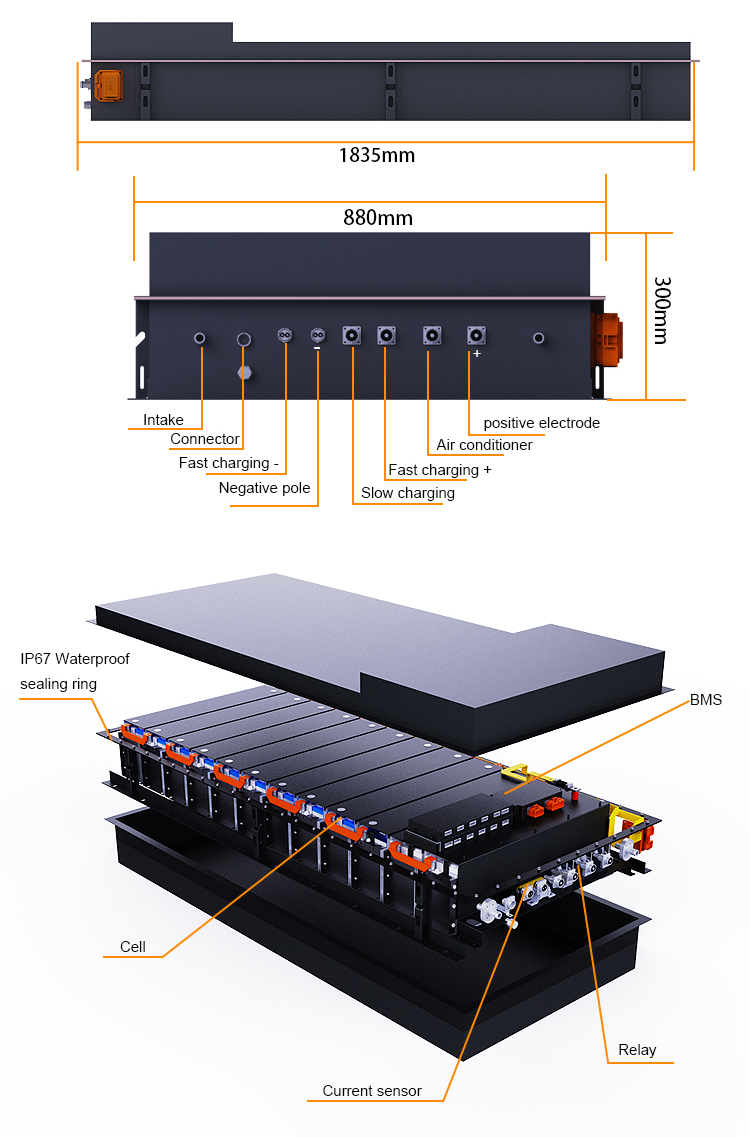

Dimension
Details
  	 			Parameters of 345v 210Ah Lifepo4 battery pack

 			No.
 			Items
 			Technical requirement
 			Note

 			1
 			Battery Type
 			Lifepo4
 			108S2P

 			2
 			Capacity(Ah)
 			210
 			@25℃

 			3
 			Volatge
 			345


 			4
 			Power(kWh)
 			72.45


 			5
 			Weight(kg)
 			603


 			6
 			Working Voltage range(DC V)
 			270-394.2


 			7
 			Continuous discharge current(A)
 			200
 			@EOL,@25℃

 			8
 			Peak discharge current(A)
 			600
 			For 30 seconds

 			9
 			Standard charge current(A)
 			100


 			10
 			Max charge current(A)
 			200


 			11
 			Dimension (L/W/H, mm)
 			1835*880*300mm




Core technologies
>>> Lightweight and scalability <<<CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum alloy and high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE structural simulation analysis to ensure structural strength and improve energy density. CTS uses standardized cells and BMS to build a 12V 24V 48V 72V battery modules. It can need different customer’s requirements by its excellent scalability to shorten the pack design cycle.
>>> BMS and Active Balance <<<
CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can modify BMS parameters on site according to the actual application of customers, such as CAN / RS485 communication protocol, threshold parameters such as over / under voltage protection, high current protection, over / under temperature protection.
>>> Thermal Management and Simulation Design <<<CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering),
and can do thermal management simulation design and structural mechanics simulation design for the pack system.
Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.
>>> Test and Verification <<<
CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification / production verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design requirements. It includes temperature test, mechanical test, external environment simulation test, battery performance test, electrical safety test, abuse test and so on.
Product Safety
Related Products
  	 			NMC 72V 200Ah Lithium battery

 			Battery Type
 			NMC

 			Capacity
 			200Ah @25℃

 			Voltage
 			72v

 			Weight
 			130.5kg

 			Working voltage
 			60 ~ 84v

 			Battery power: 14.4 kWh
Client Country: Canada, in operation since 2015


  	 			Lifepo4 96V 400Ah Lithium battery

 			Battery Type
 			Lifepo4

 			Cpacity
 			400Ah @25℃

 			Voltage
 			96v

 			Weight
 			337kg

 			Working voltage
 			75-109.5

 			Battery power: 38.4 kWh
 			Client Country: New Zealand, In operation since 2020


  	 			NMC 144V 100Ah lithium battery

 			Battery Type
 			NMC

 			Capacity
 			100Ah @25℃

 			Voltage
 			144v

 			Weight
 			130.5kg

 			Working Voltage
 			120 - 168v

 			Battery power: 14.4 kWh 			Client Country: Thalaind, In operation since 2020


  	 			Lifepo4 614v 100Ah lithium battery

 			Battery Type
 			Lifepo4

 			Capacity
 			100Ah @25℃

 			Voltage
 			614.4v

 			Weight
 			558kg

 			Working Voltage
 			480 ~ 700.8v

 			Battery power: 61.44 kWh 			Client Country: UK, In operation since 2019


Application field
System Stability, high and low temperature resistance, long life, high cost performance,high safty, ultra-wide application range.
Company Profile
10+ years to sharpen a sword.
 We do only one thing, professional customization.

 20 + R&D team
 10 production lines
 150 front-line production employees
 20,000 square meter plant
 Capacity up to 500mwh
Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.

We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter,
E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.

 We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements.
To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.

 We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
Product testing and shipping
1. Customized plywood case and foam packaging, safe for different shipment 2. MSDS and UN38.3 certifications to ensure customs declaration and clearance during transportation
3. 100% full testing before shipment to ensure quality
4. Customs on-site inspection to ensure the safety of the battery
