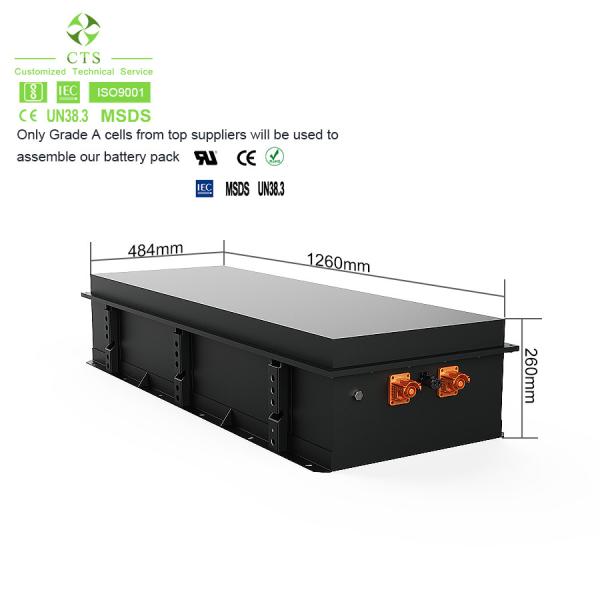

PDU BMS 400A Relays Fuses COM Socket Electric Boat Battery 96V 300AH Lifepo4 Battery Pack

Brand Name : CTS

Model Number : CTS96300

Certification : CE/IEC/UL

Place of Origin : China

MOQ : 1

Price : 3800-6800

Payment Terms : L/C, T/T

Supply Ability : 10000PCS

Delivery Time : 40-50 working days

Packaging Details : foam and wooden box by sea, UN box by air

Total Energy : 28.8kwh

Customization : Support

Capacity : 300ah

Battery Type : Lithium-ion/LFP

Dimensions : 1000mm x 500mm x 300mm

Hs Code : 8507600090

Battery Case : Metal

Internal Resistance : ≤200mΩ

Voltagge : 96V

Charging Time : 4 hours

Protection Level : IP67 metal plate by default

Communication : CAN /RS485

Transport Package : Foam & Plywood Case

Output : 96V

PDU : Built in

Contact Now

EV lithium battery 40kwh 45kwh 200v 220V 300V lifepo4 battery pack for electric vehicle boat

PDU BMS 400A Relays Fuses COM Socket Electric Boat Battery 96V 300AH Lifepo4 Battery Pack

48V Marine battery 72V Marine battery 96V Marine battery 144V Marine battery
300V Marine battery 400V Marine battery 500V Marine battery 600V Marine battery

OEM/ODM

100% After-Sales Gurantee 100% Free Technical Support Fast Delivery

◆ Longer cycle life, more Powerful
◆ Built-in smart BMS monitor battery state
◆ Extremely safe, no explosion, no fire under collision
◆ Cooling and heating system optional
◆ Customized battery solutions base on yours requirements
◆ Excellent large current discharge performance
◆ Low self-discharge and good discharge performance at low temperatures

The Paramerters of 96V 300AH Lifepo4 battery pack

MODEL NUMBER	H-CA-321110-1
Cell Type - Chemistry	Prismatic- LiFePO4
Rated Capacity	304Ah
Rated Voltage	96V
Energy	29.18KWh
Resistance	30mΩ
Self Discharge	<3% per month
PDU	BMS, 400A relays, fuses, COM socket
Dimensions (L x W x H)	L1300W500H380mm (Can make it smaller if you want)
Weight	2540Kg
Enclosure Protection	IP67 stainless steel case
Discharge Cut-off Voltage	75V
Max Continuous Discharging Current	300A
Peak Discharge Current	400A for 60 seconds
Recommended Discharge Current	300A
Charging Limited Voltage	109.5V
Max Charging Current	200A
Recommended Charge Current	100A
Charge Temperature Range	0~50℃
Discharge Temperature Range	-20~60℃
Recommended Operating Temperature	15~35℃
Available on request	Size, C rate, Communication protocol

Most safe LFP battery technology

more powerful

LiFePO4 battery is an excellent option for electric boats due to its high energy density, long cycle life, low self-discharge rate, high discharge rate, fast charging, and safety. It provides a reliable, efficient, and eco-friendly power source for electric boats, allowing them to travel longer distances and operate more smoothly.

Laser Welding

It can further strengthen the connection and completely eliminate the risk of screws
falling. The contact surface between the screw and the bus bar is reduced to improve the current capability. lt can also reduce
internal resistance and reduce power consumption.

Smart BMS to manage the battery

Short-circuit protection,Overcharge and over-discharge protection, and over-temperature protection to ensure the safety of the battery..

Cell balancing, Temperature sensing and control, State-of-charge (SOC) estimation, Real-time monitoring and management,

Communication interface:CAN,RS485 optional .

Stainless steel case with IP67 waterproof

304/316 stainless steel case is highly resistant to corrosion, making it suitable for use in variousenvironments, including marine and chemical industries.

A stainless steel case with IP67 waterproof rating offers a rugged, long-lasting, and moisture-resistant enclosure that provides protection for battery pack in harsh environments.

CTS lithium battery has a wider range of application and can meet 90% of yacht , tour boat, and speedboat products in the market,According to the size requirements of the ship, we can design and customize the matched
lithium battery system. CTS provides one-stop battery service. we also can provide OBC , charge piles etc

From the battery cell to the battery pack, CTS controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer
