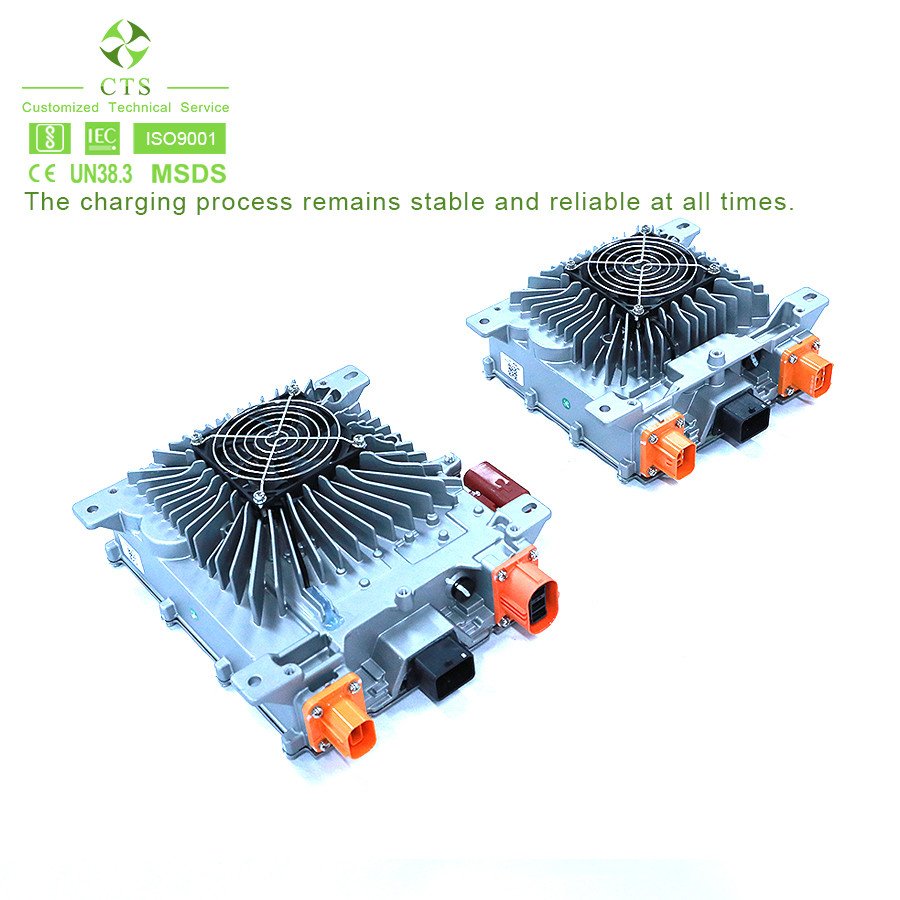

Air/Water Cooled On Board Charger for Electric Cars with IP67 Rating and 50V-99V Output

Brand Name : CTS

Model Number : on board charger

Place of Origin : Hunan

MOQ : 2

Price : $280-350

Supply Ability : 4000

Delivery Time : 10-15 working days

Packaging Details : carton

Dimensions : 200mm x 120mm x 50mm

Product Type : 3.3KW 6.6KW

Battery Cell : LFP and NCM

Output Power : 2K Watts

Cooling Method : Natural Cooling

Dc Output : Rated 48V 18A, Max 58.4V or 54.6V

Certifications : CE, FCC, RoHS

Ac Input : 110 / 230 Vac

Ip Grade : IP67 waterproof

Charge Display : Voltage & Current LCD Display

Net Weight : 4.5 KG

Keywords : Bms 48v

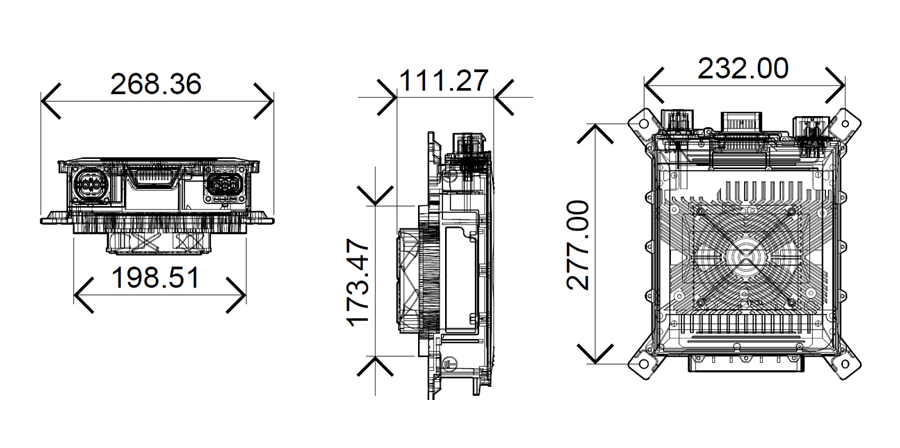

Dimension : 296×216×98 MM

Enclosure : Aluminum, Black / SIlver

Portable : Yes

Contact Now

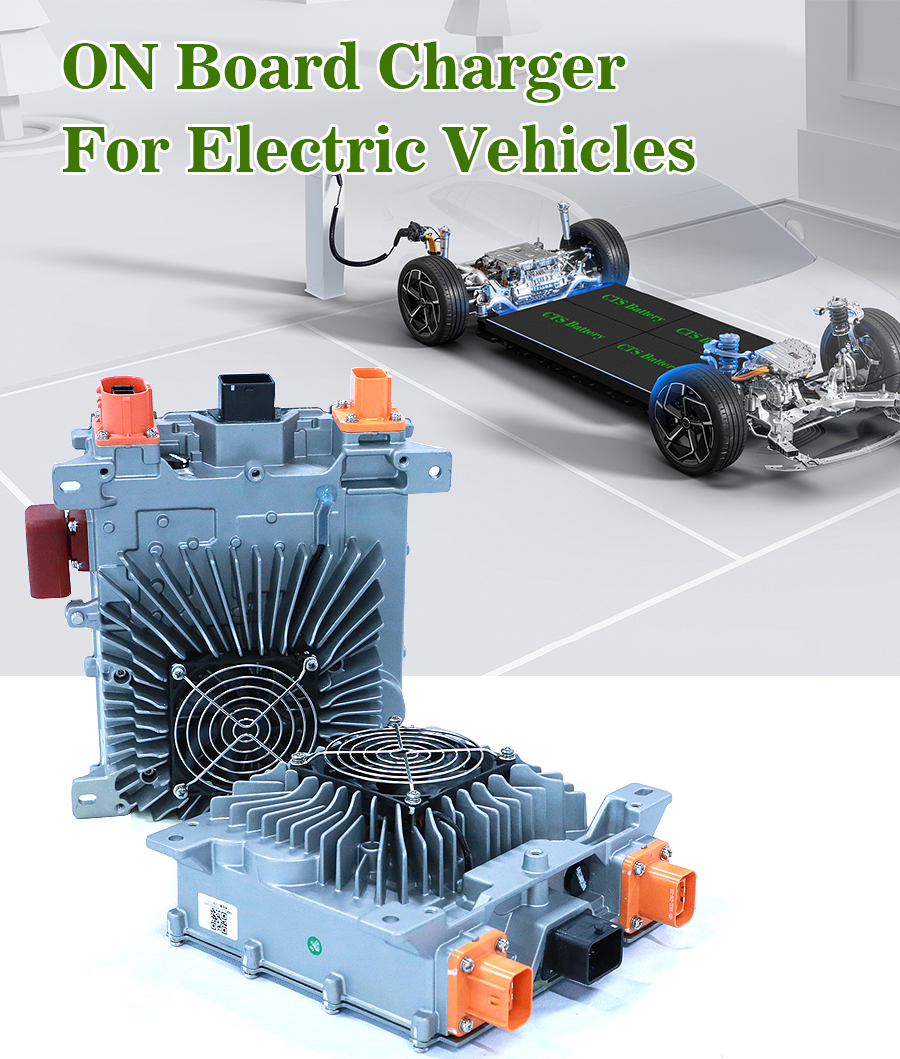

Air/Water Cooled On Board Charger for Electric Cars with IP67 Rating and 50V-99V Output

Air/Water Cooled On Board Charger for Electric Cars with IP67 Rating and 50V-99V Output

Main Features :
1.Support UDS diagnosis CAN wake-up function
2.Fully sealed process can work reliably under the conditions of -40°C-+85°C
3.Built-intemperature sensor to shut down output under hazardous operating conditions (internal 90°C)
4. Protection level IP67 Can work safely under short-term water immersion conditions

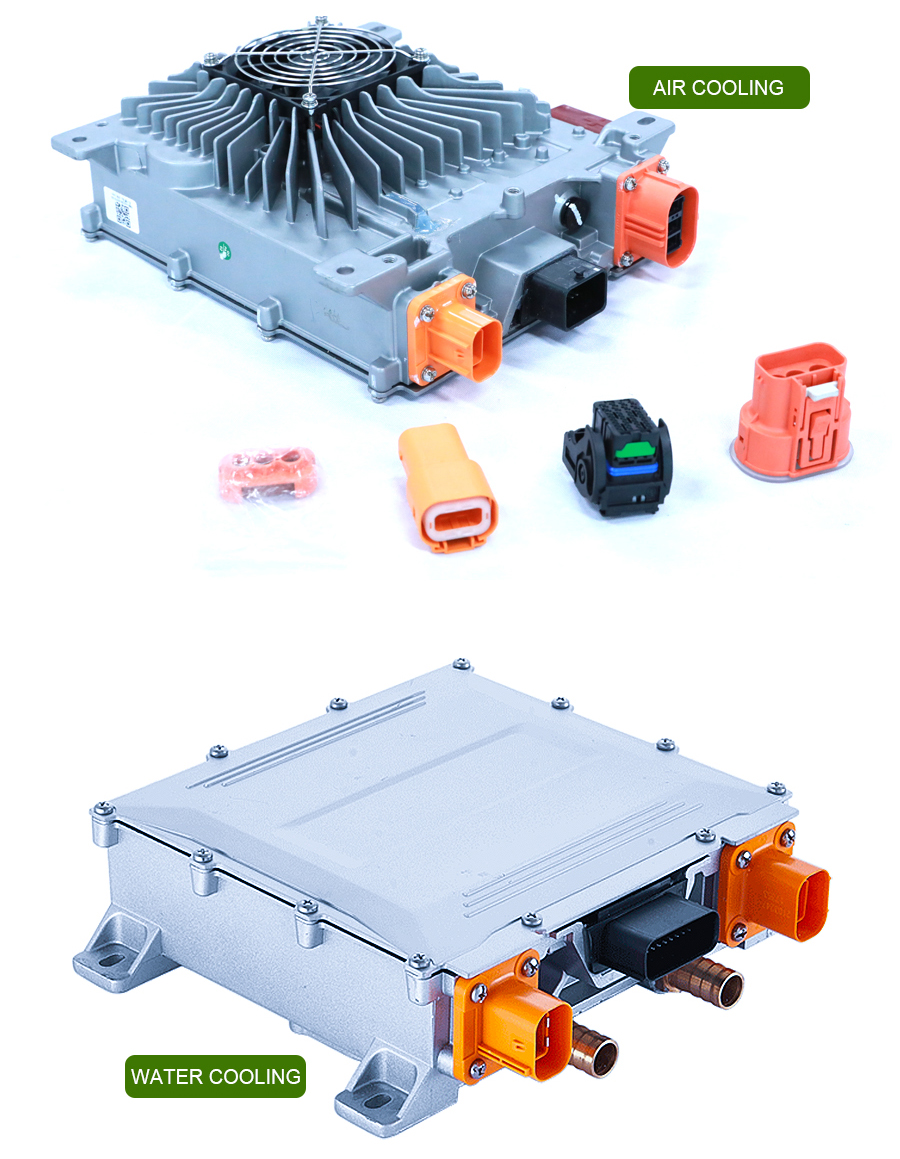

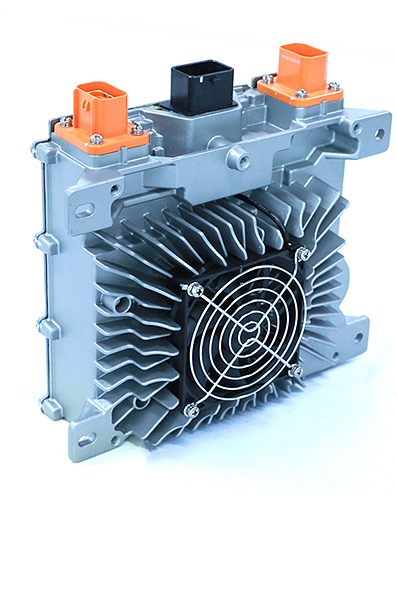

5. Heat dissipation method: air cooling / water cooling
6. Optional 12V DC/DC Converter for low-voltage equipment for electric vehicles..

Air/Water Cooled On Board Charger for Electric Cars with IP67 Rating and 50V-99V Output

The parameters of 3.3KW OBC

Model	Input voltage range	Input Current	The output voltage	Output current
HK-J-H99-40	AC 90~265V	16A	50V-99V	40A
HK-J-H132-32	AC 90~265V	16A	35V-132V	32A
HK-J-H198-23	AC 90~265V	16A	50V-198V	23A
HK-J-H440-10	AC 90~265V	16A	110V-440V	10A

input	frequency	45-65Hz
	effectiveness	94%
	Power Factor	0.99
	Standby power consumption	≤5W
Main output	output method	Constant voltage / constant current
	Output Power	3300W@220VAC 1600W@110VAC
	Constant pressure accuracy	±1%
	Constant current accuracy	±2%
	Ripple voltage coefficient	5%
Low voltage output	output method	Constant pressure
	The output voltage	13.8V
	Rated current	5A
	Constant pressure accuracy	±2%
	Maximum current	5.5A±0.5A
	Output Power	≥62.5W
	Ripple voltage coefficient	1%
Communication function	CANcommunication	yes
	Baud rate	125Kbps,250Kbps,500Kbps(According to customer needs)
	Terminating resistor	no

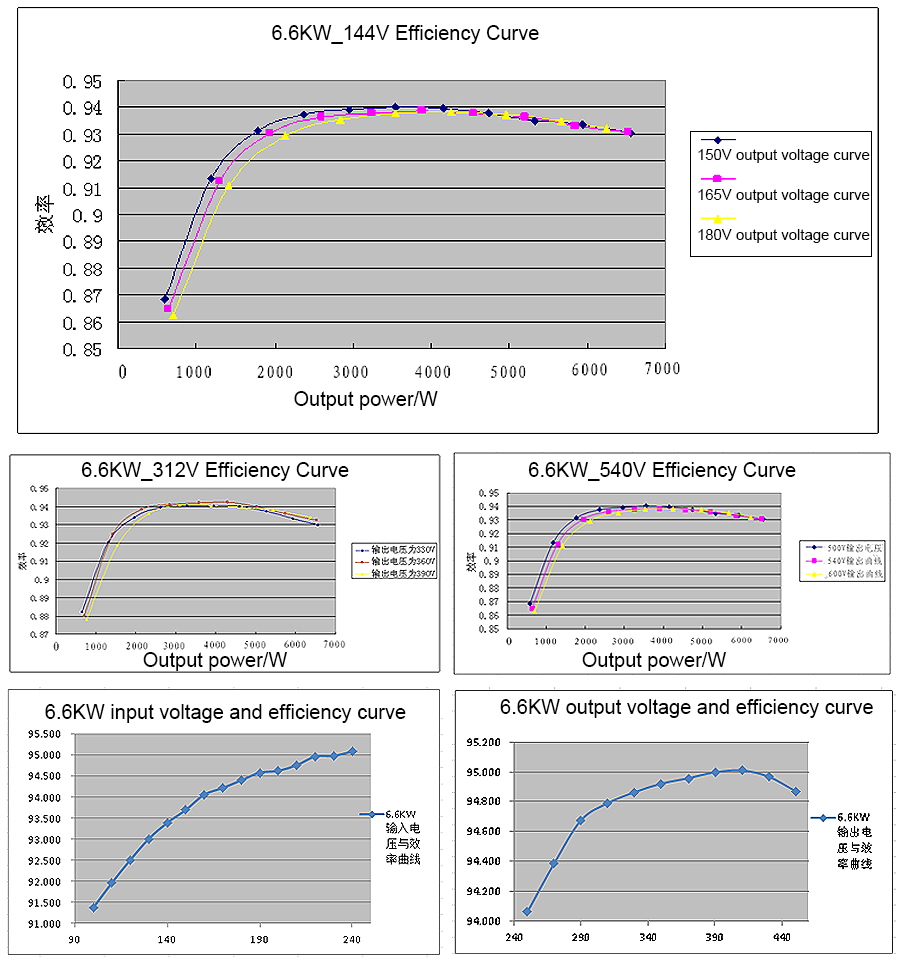

The parameters of 6.6KW OBC with 1500W DCDC converter

Model	Voltage	Charger Hardware	DC-DC Hardware	DC-DC power	cooling method
CD-LW01	144V	HK-LW-202-46	TDC-JH-144- 12	1K5W	Liquid Cooling
CD-LW02	312V	HK-LW-450-20	TDC-JH-320- 12	1K5W	Liquid Cooling
CD-LW03	540V	HK-LW-680-14	TDC-JH-540- 12	1K5W	Liquid Cooling
CD-LW04	108V	HK-LW-177-60	TDC-JH-108- 12	1K5W	Liquid Cooling
CD-LW05	216V	HK-LW-290-28	TDC-JH-216- 12	1K5W	Liquid Cooling
CD-LF01	144V	HK-LF-202-46	TDC-JH-144- 12	1K5W	Air Cooling
CD-LF02	312V	HK-LF-450-20	TDC-JH-320- 12	1K5W	Air Cooling
CD-LF03	540V	HK-LF-680-14	TDC-JH-540- 12	1K5W	Air Cooling
CD-LF04	108V	HK-LF-177-60	TDC-JH-108- 12	1K5W	Air Cooling
CD-LF05	216V	HK-LW-290-28	TDC-JH-216- 12	1K5W	Liquid Cooling

Voltage platform		108V	144V	216V	312V	540V
Output	Output voltage range	45~ 177V	50~ 202V	70~ 290V	110~4 50V	170~6 80V
Output	Output current	60A	46A	28A	20A	14A

output	Output power	6600W@220VAC 3300W@110VAC
	Output mode	constant voltage / constant current
	Constant voltage accuracy	± 1%
	Constant current accuracy	±2%
	Ripple voltage coefficient	5%
Input	Input voltage range	AC 90~265V
	Frequency	45-65Hz
	Input current	32A
	Power factor	≥ 0.99 More than half a load
	Efficiency	≥ 93% the full load
	Standby power	≤ 5W
Low voltage output	Output mode	constant voltage
	Output voltage	13.8V
	Rated current	5A
	Constant voltage accuracy	±2%
	output power	≥ 62.5W
	Ripple voltage coefficient	1%

Efficiency: It has a high charging conversion efficiency, which can minimize energy loss.
Safety: It has a high level of safety and there will be no electrical accidents or other dangerous situations during the charging
process.
Stability: It has good stability, ensuring that the charging process remains stable and reliable.
Compatibility: It has a wide range of compatibility, suitable for various types of electric vehicles and charging station
equipment.
System integration: It integrates with other electric vehicle systems, such as vehicle electronic control systems, battery
management systems, etc., to ensure the stability and reliability of the entire electric vehicle system.

This is a product designed specifically to supplement the power battery of electric vehicles, in accordance with the national standard for charging equipment. The product has many advantages,such as high efficiency, small size, high stability, and long lifespan. It also features a high protection level, high reliability, and complete protection functions, making it an ideal power source for charging electric vehicles.
