48V 60V 72V 5kW 8kW Lithium Ion Golf Cart Batteries 48V 135Ah 51.2V 150Ah 72V 200Ah Lifepo4 Lithium Battery Pack for Golf Cart

Brand Name : CTS

Model Number : CTS-48135-1

Certification : IEC R100, IEC62619, CE, MSDS, UN38.3

Place of Origin : Hunan, China

MOQ : 2

Price : 760~1099 USD/unit

Payment Terms : T/T, Alibaba, Paypal, L/C

Supply Ability : 5000 units/month

Delivery Time : 35 days

Packaging Details : UN carton and wooden box

Application : Golf cart, Baots,Refrigerated trucks, ATV, AGV

Voltage : 48V 60V 72V(customizable)

Capacity : 105Ah 150Ah 200Ah 314Ah(customizable)

Advantages : Long cyclelife, high efficiency

BMS : Built-in smart BMS

Cell type : LFP/NMC/semi solid/solid

Discharge Rate : 1C~3C

Size : Flexiable

Water proof : IP54 and higher

Thermal management : Support customized

Customized : Acceptable

Software : Free software

Cell Grade : A+ grade

Communication : CAN, RS485

Contact Now

  48V 60V 72V 5kW 8kW Lithium Ion Golf Cart Batteries 48V 135Ah   51.2V 150Ah 72V 200Ah LiFePO4 Lithium Battery Pack for Golf Cart

48V 60V 72V 5kW 8kW Lithium Ion Golf Cart Batteries 48V 135Ah 51.2V 150Ah 72V 200Ah Lifepo4 Lithium Battery Pack for Golf Cart

╣DIMENSIONS

Part No.	CTS3680	CTS36160	CTS4880	CTS48160	CTS7280	CTS72160
ELECTRICAL SPECIFICATIONS
Cell Configuration	12S1P	16S1P	16S1P	16S2P	23S1P	23S2P
Rated Capacity	80Ah	80Ah	105Ah	160Ah	80Ah	160Ah
Rated Voltage	38.4V	51.2V	51.2V	51.2V	73.6V	73.6V
Energy (kwh)	3.072	4.096	5.376	8.192	5.888h	11.776
Dimensions (cm)	352025	45 * 30 *18	45 * 35 *25	503525	353525	653525
Weight	28Kg	40Kg	48Kg	68Kg	48Kg	90Kg
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage	30V	40V	40V	40V	57.5V	57.5V
Max Continuous discharge current	80A	80A	100A	150A	80A	150A
Charging Limited Voltage	43.8V	58.4V	58.4V	58.4V	83.95V	83.95V
Max Charging Current	40A	40A	50A	80A	40A	80A
Charge Temp	0~55℃
Discharge Temp	-20~55℃
Recommended Operating Temp	15~35℃
Recommended Storage Temp	15~35℃, 45~75%RH
WARRANTY
2-Year warranty , 3500 cycles @80% DOD

╣PRODUCT ADVANTAGE

Use only the highest quality batteries
Batteries that use the same standard as the country

48V 60V 72V Golf Cart Battery Pack built with the grade A high quality LiFePO4 cell, with over 3500+ cycle life and a 10 year lifetime cycle use. Life-time technical support.

* Use 100% brand new grade A Lifepo4 cells

* Charge current: ≤100A

* Built-in BMS

* Continuous discharge current: ≤100A

* Case Material: Metal Case

* Over 5000 cycles at 80% DoD

╣LIFEPO4 BATTERIES VS LEAD ACID

Ⅰ-Higher energy density

LifePO4 batteries have more energy density , It is much smaller in weight and volume . Under the same specification and capacity, the volume of lithium ion battery is about 2/3 of that of lead-acid battery, and the weight is about 1/3 of that of lead-acid battery.

Ⅱ-Green and environmental protection

Lead acid battery contains a large amount of lead, which will cause certain damage to the environment. LiFePO4 batteries MAINTENANCE-FREE, free from daily managing.

No water filling, no terminal tightening and cleaning of acid deposits on the top of our batteries.

Ⅳ.HIGHER CHARGING EFFICIENCY

LESS POWER CONSUMPTION

Our LiFePO4 batteries can be charged quickly in a short time, up to 2 hours .

effectively increasing productivity. Battery charger and other accessories available.

╣APPLICATIONS

╣COMPANY INTRODUCTION

*10+ years to sharpen a sword.

*We do only one thing, professional customization.

*20 + R&D team

*150 front-line production employees

*10 production lines

*20,000 square meter plant

*Capacity up to 500mwh

CTS focuse on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.

We have more 30 types of cells, and could make OEM battery pack from 12v-1000v, over 1000kWh, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.

We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1, IATF16949 and O H S A S 1 8 0 0 1 certifications.

We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.

╣Contact us

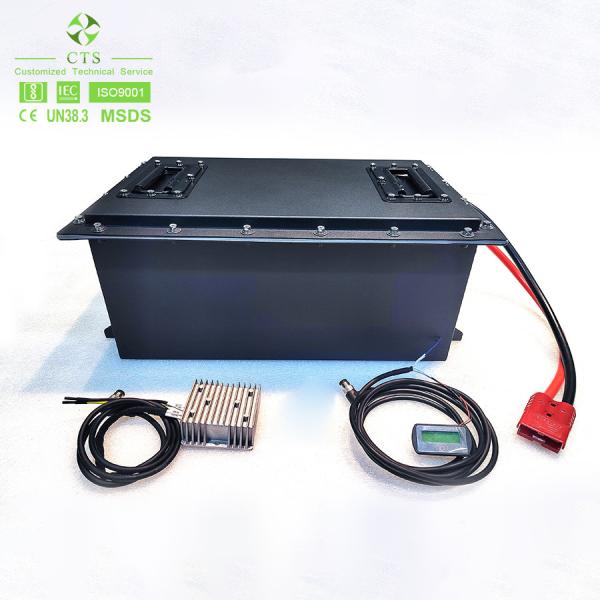

48V 60V 72V 5kW 8kW Lithium Ion Golf Cart Batteries 48V 135Ah 51.2V 150Ah 72V 200Ah Lifepo4 Lithium Battery Pack for Golf Cart Images
