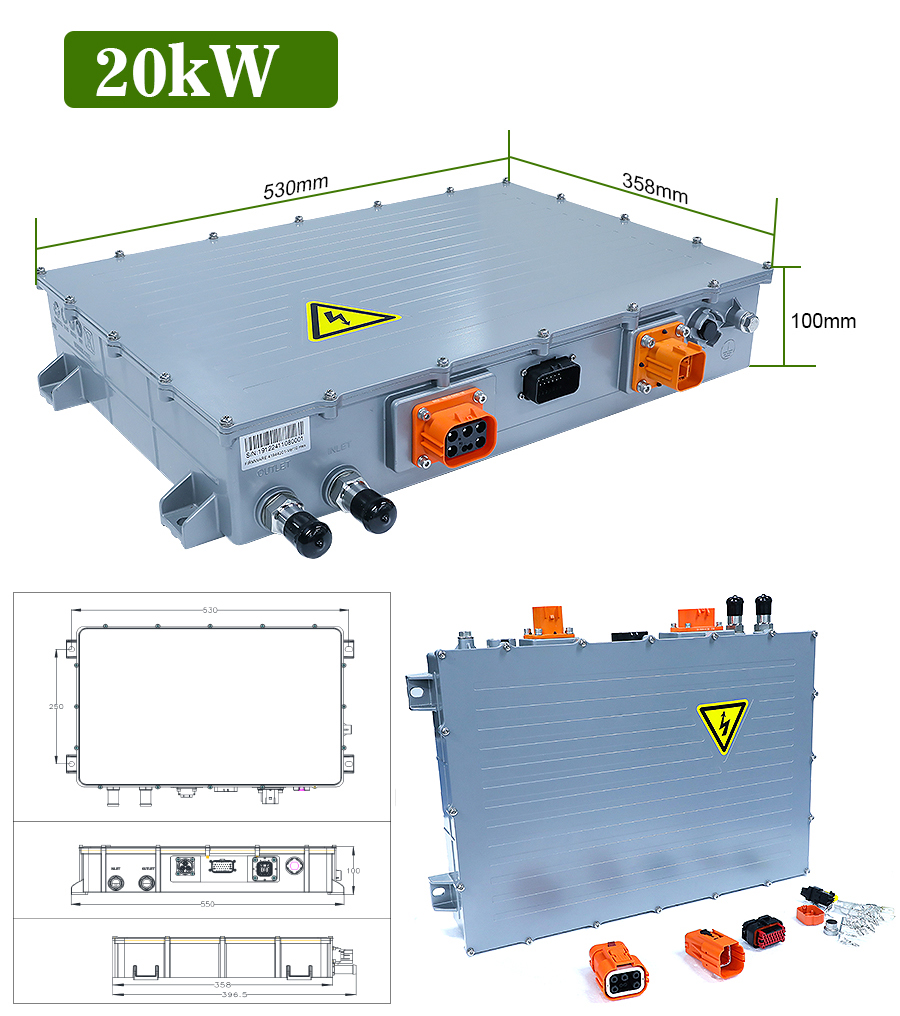

540V 650V 700V OBC 20KW Ev Charger On-board Charger With 400VAC Input

Product Categories

Hunan CTS Technology Co,.ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : CTS

Model Number : On Borad charger 20KW

Certification : MSDS/UN38.3

Place of Origin : Changsha ,hunan province

MOQ : 1

Price : 2500USD/Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000pcs/month

Delivery Time : 25 working days

Packaging Details : carton case

Output power : 20KW@220VAC

Input voltage : 90VAC to 265VAC

Application : charger for ev car

Type of cooling : Air Cooling or liquid cooling

IP Grade : IP67 waterproof

Weight : 3kg

Version : 20KW

Contact Now

540V 650V 700V OBC 20KW ev charger On-board Charger with 400VAC Input

Model
On-board power supply type	Liquid-cooled on-board charger assembly
Model	TR3631	TR3632	TR3633	TR3634	TR3635	TR3636
Input Characteristics
Rated input voltage	380VAC three-phase five-wire system ( middle wire must be reliably connected ) 6.6kW(220V single-phase input)
Input voltage range	152～456VAC
Rated input voltage and frequency	50Hz
Input frequency range	45～65Hz
Starting inrush current	≤32A
Input power factor	≥0.99(@380Vin, Pomax)
Output Characteristics
Rated output power	20KW
Output voltage range V	0-105	0-135	0-180	0-500	0～720	0-850
Output current range A	0-240	0-180	0-132	0-54	0～36	0-27
Voltage stabilization accuracy	±1%
Stabilization accuracy	±0.5A(Io≤10A)&≤±5%(Io>10A)
Voltage ripple factor	≤1%
Output response time	≤200mS
